SGS 0.3L 4000BPH Automatic Mineral Water Bottling Machine

Brand Name : FillPack

Model Number : CGF12-12-4

Certification : CE & ISO & TUV & SGS

Place of Origin : China,JiangSu,Zhangjiagang

MOQ : 1 set

Price : 16000USD

Payment Terms : TT & L/C

Supply Ability : 20 Sets Per Months

Delivery Time : 30 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package

Suitable Bottle Size : 0.3-2L PET Bottle

Cap Style : Plastic Screw Cap

Capacity : 4000BPH

Control : PLC Control With Touch Screen

Processing : Japan & Germany

Warranty : 1 Year for Spare Parts

Contact Now

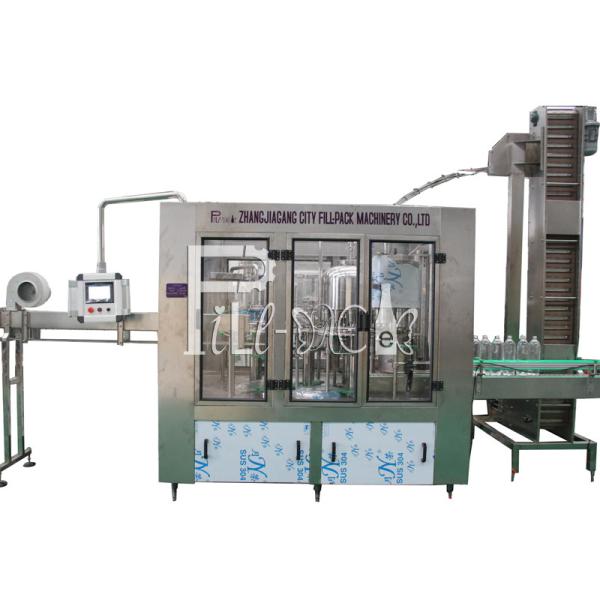

Easy to operate automatic small bottle filling machine for drinking water

1. The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.


3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

6. The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

Specifications:

Model
CGF12-12-4
Dimensions
2100*1700*2400mm
Capacity
4000BPH
Bottle Type
PET Bottles
Filling Range
200ml---2000ml
Cap Type
Plastic Screw Cap
Voltage
220/380V
Suitable For
Non-carbonated Water

SGS 0.3L 4000BPH Automatic Mineral Water Bottling Machine

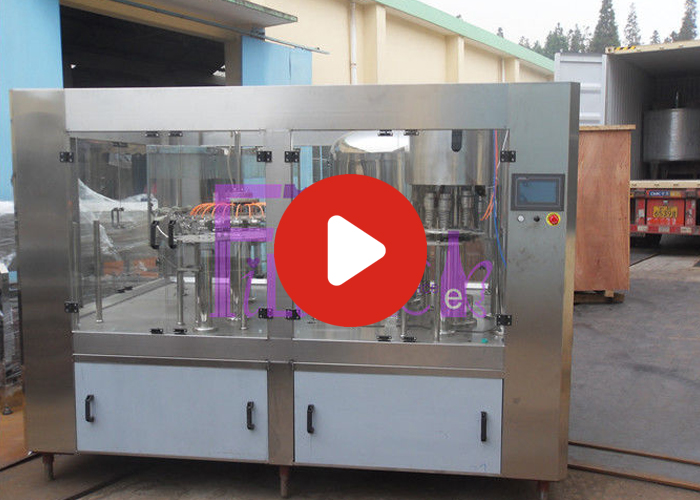

please kindly click the play button to watch the video
