PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottle Producing / Production Machine / Equipment / Plant / Sys

Name: PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottle Producing Production Machine Equipment Plant Sys
Brand: FillPack
Price: 20000 USD

PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottle Producing / Production Machine / Equipment / Plant / Sys Manufactures

Brand Name : FillPack

Model Number : DCGF32-32-10

Certification : CE & ISO & TUV & SGS

Place of Origin : China,JiangSu,Zhangjiagang

MOQ : 1 set

Price : 20000-50000USD

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 20 sets/month

Delivery Time : 30 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package

Dimension(L*W*H) : 2980*2200*2250 mm

Weight : 4500KG

Power : 7KW

Electrical Brand : Mitsubishi, OMRON, SIEMENS

Capacity : 7000-10000BPH

Color : Silver Gray

Contact Now

Description of Plastic bottle carbonated drink filling line DCGF24-24-8

>>>Overview of Production Line:

This scheme is conventional configuration, with reasonable design, stable operation, product quality to meet the requirements, and has been applied and tested in a number of similar projects.

★A) Distribution system: raw materials are mixed into raw material slurry, and the tank body is made of food grade SUS304 stainless steel.

★B) Filling equipment: choose different capacity of filling machine according to actual production needs.

>>>Design basis:

★1. Raw Water Quality Report: Required to be Provided by Users

★2. Equipment Flow:Water Making Equipment
Material → Distribution System → Beverage Mixer → Filler → Conveyor Chain → Warm Bottle Machine → Lamp Inspection → Packaging Equipment → Finished Products

PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottle Producing / Production Machine / Equipment / Plant / Sys

Optional carbonated drink making machines in the carbonated filling line
Drink carbonator	Output	Mixing precision	Purity of CO2	Dimension	Weigh	Power
QHS-1000	1T	2%	99.9%	10009001900mm	500Kg	1.5Kw
QHS-3000	3T	2%	99.9%	200014002200mm	1200Kg	5.8Kw
QHS-6000	6T	2%	99.9%	210015002270mm	1350Kg	6.3Kw
QHS-9000	9T	2%	99.9%	215014002380mm	1500Kg	6.5Kw
QHS-18000	18T	2%	99.9%	200017502400mm	1950Kg	7.2Kw

Optional RO water treatment machines in the carbonated filling line
Model	Capacity(liter per hour)
RO-1000	1000LPH
RO-3000	3000LPH
RO-5000	5000LPH
RO-6000	6000LPH
RO-10000	10000LPH
Optional plastic bottle carbonated filling machine in the carbonated filling line
Model	Capacity(bottle per hour)
DCGF12-12-4	1000-2000BPH
DCGF18-18-6	3000-4000BPH
DCGF24-24-8	6000-7000BPH
DCGF32-32-10	8000-10000BPH
DCGF40-40-12	10000-12000BPH

If you need glass bottle carbonated filling line, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.

>>>The whole line including:

Water treatment system

Carbonated drink making part

Drink cooling tank and Drink carbonator
★ Characters of carbonator:Refined material using, precise processing.Auto running, stable facility.Convenient operation and easy adjustment.Mixing uniformity, the proportion is accurate.The structure is healthy and easy to clean.
★ The cooling tank is composed of tank part and chilling compressor device part; the tank is made of SUS304 cover and lot of SUS304 coil tubes to put into the tank. When the chilling compressor start to work, the compressor will generate chilling water, the chilling water is passing inside of the tubes, there is liquid outside the tubes and inside the tank.

Bottle washing-fiiling capping machine

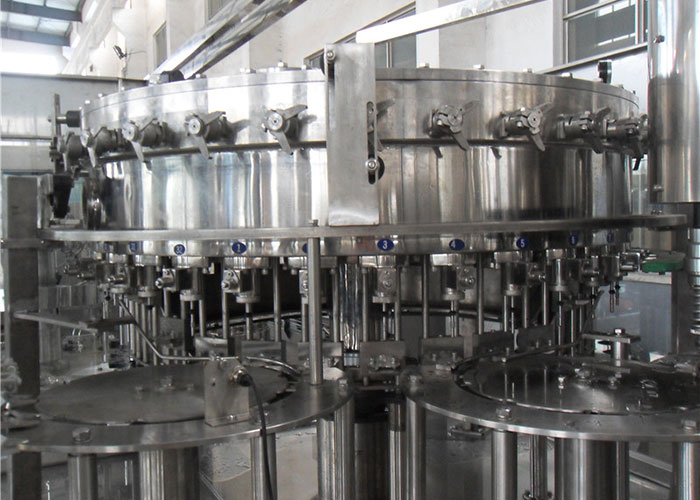

★ Our plastic bottle filling machine uses balanced pressure filling technology.This machine integrates washing, filling and capping parts into a 3-in-1 machine.
★ According to the number of washing head filling head and capping head, the speed of our filling machine have 2000BPH4000BPH6000BPH8000BPH etc. You just need to tell us the speed you need, and we can recommend you the right type machine.

Carbonated drink bottle warmer

Labeling machine

Code printer

Film shrinking packing machine
