RO Drinking Water Treatment System Stainless Steel 3000L Per Hour

RO Drinking Water Treatment System Stainless Steel 3000L Per Hour


Quick Detail:

1. Capacity: 3000L/H
2. Material: SUS304
3. Condition: New
4. Control: PLC control and touch screen
5. Treat the dell water, deep water, city water to be drinkable directly or beverage food production use.
6. The machines are fine polished well, looks nice and with longlife span


Main components:

drinkable water reverse osmosis system

Usually, this system contains: sand filter, active carbon filter, micro filter, RO system, UV sterilizer, Ozone

mixer tank.

1. sand filter:

This filter can remove the impurity in the water like silt, grain, suspended matter , etc..

2. active carbon filter:

This filter can remove the suspended matter and organic matter in the water.

3. micro filter:

This filter can remove the impurity that remains in the water, protect the RO film.

4. RO system:

This system contains: RO film, pressure vessel, frame, high pressure pump, etc. The desalting rate can

reach 99.6%.

5. UV sterilizer:

Through the UV lights, the UV ray can kill the germ.

6. Ozone mixer tank:

Through this system ,the ozone can mix with the water better, and kill the germ in the water

Description:

Reverse Osmosis is to separate water from solution after it permeates the specially made semi

transparent membrane through exerting a pressure that is higher than the osmosis pressure on the

solution . As this process is reverse to the natural permeation direction , it is called reverse osmosis .

According to different osmosis pressures of various materials , the process of reverse osmosis with a

pressure higher than the osmosis pressure can be used to reach the purposes of separation , extraction ,

purification and concentration of a certain solution . It does not need heating and there is no phase

changing process , therefore , it saves more energy than traditional process

We have one stage and two stages water pirifier . if the raw water electric conductivity is below 300us/cm , the finished water electrical conductivity via the one stage treatment Ro equipment can reach below 10us/cm , and if by the two stage , that can reach 2-3 us/cm .

The RO desalting rate is above 99% , machine desalting rate is above 97%, can effectively remove 98% organic matters , colloids ,and bacteria .

Specifications:

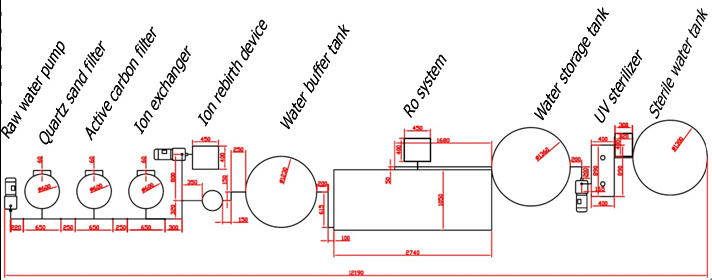

Working process:

Raw water→ Raw water pump→ Multi filter→ Active carbon filter→ Water softener→ precision filter→ RO

host→ Ozone sterilization → Pure water

Characteristics:

Nonstop working, high automation degree, easy operation, extended stable outputting water quality, no

pollution discharge and cheap cost of making

Detailed photos:

please kindly click the play button to watch the video

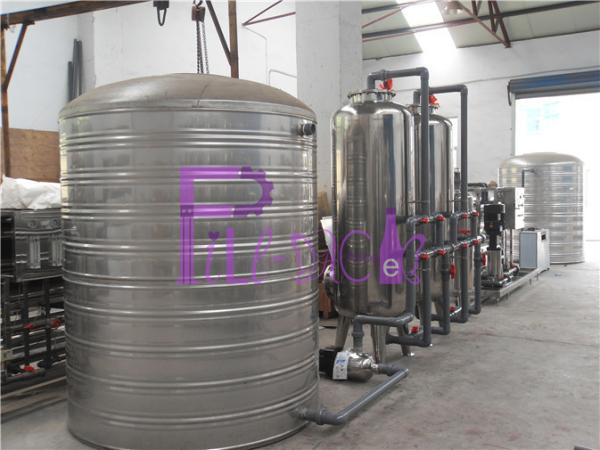

water ro system

water purifying systems
